Pallas 10
Electrical number: -
Product group: Standard wooden poles
Product number: Pallas 10

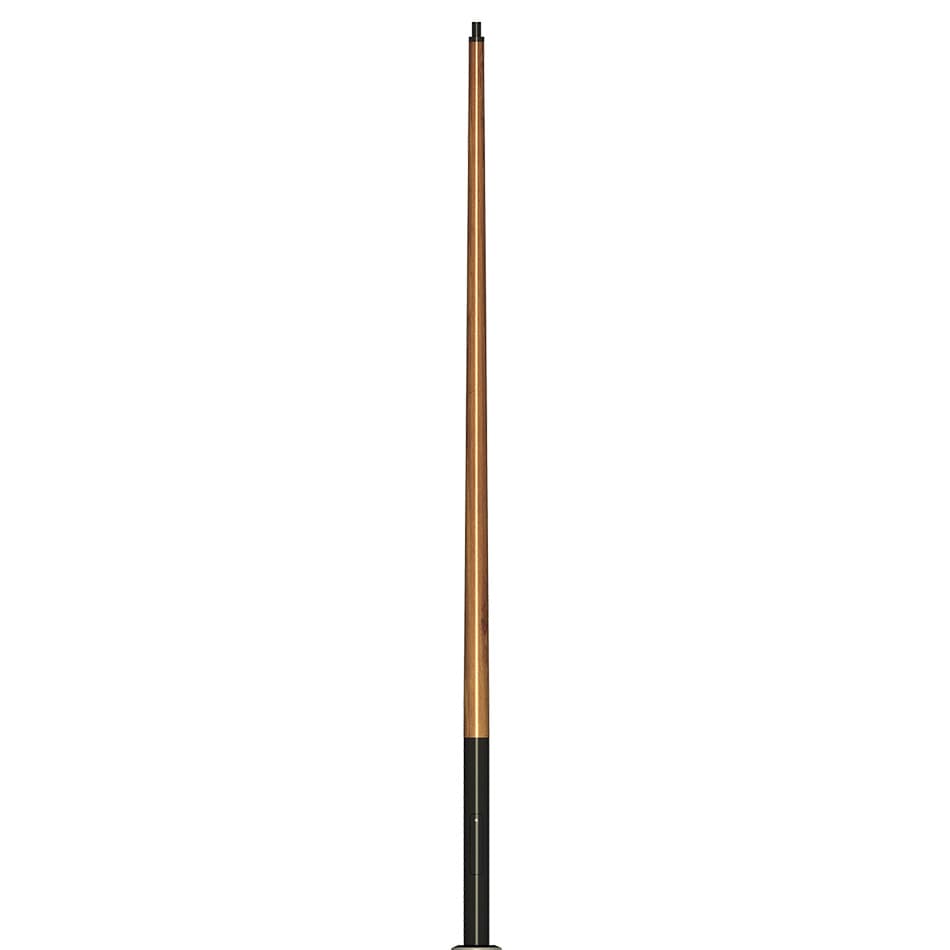

The classically beautiful Pallas exudes elegance
Pallas is the most popular model in our collection the world over. This sleek conical light pole is ideal not only for parks and area lighting, but also for roadsides.

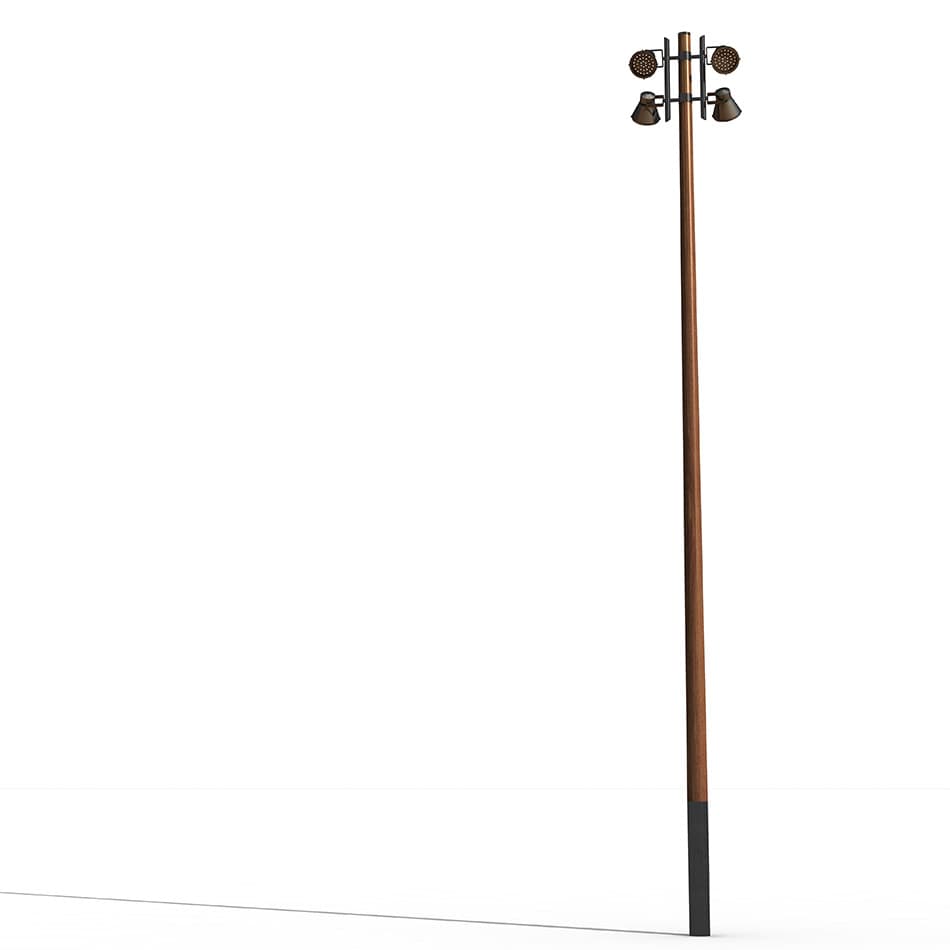

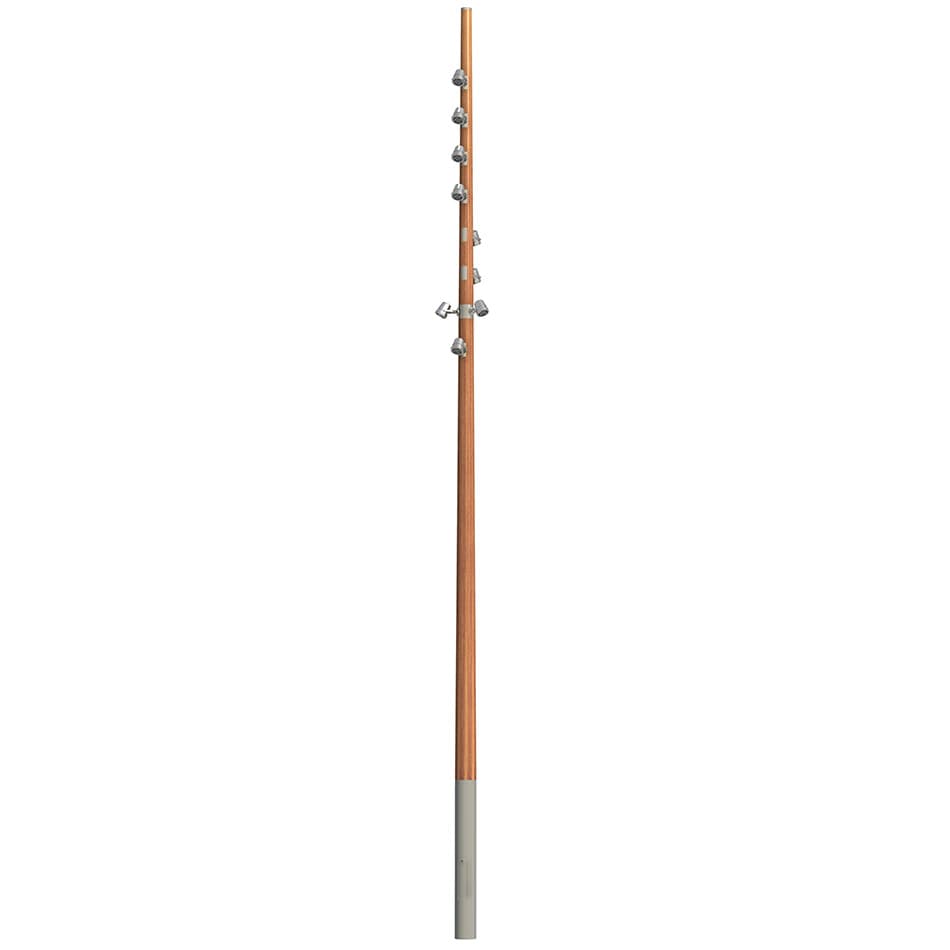

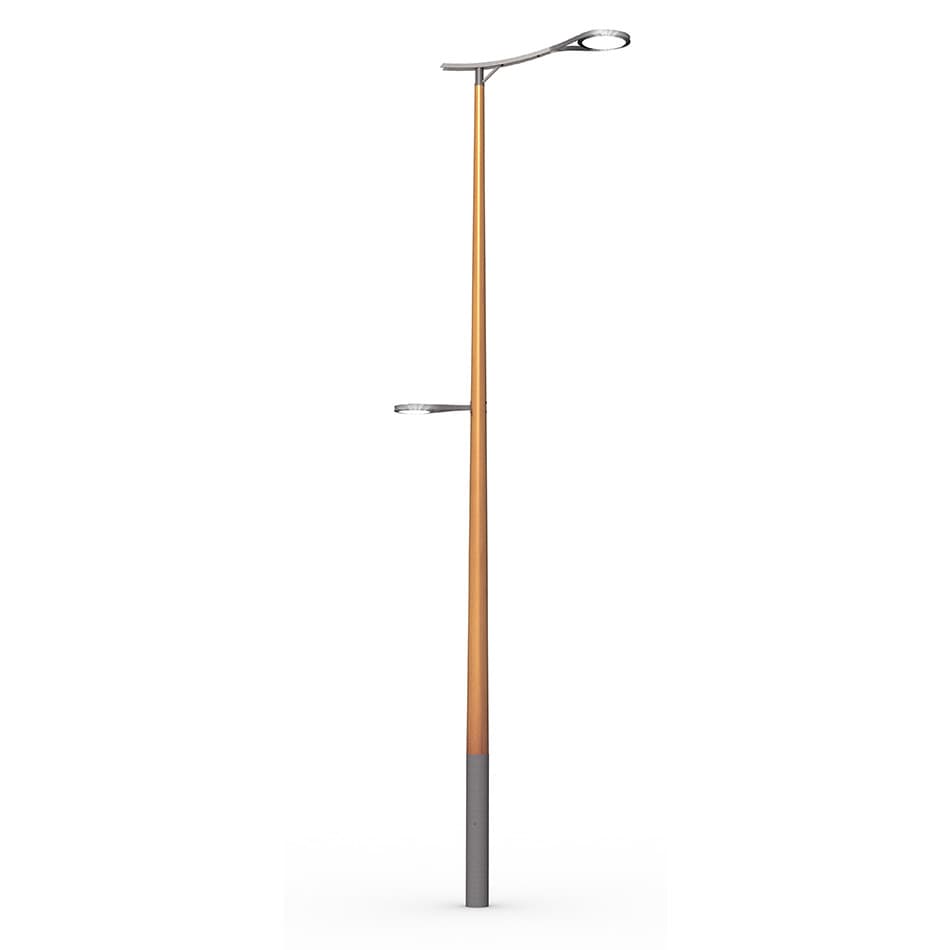

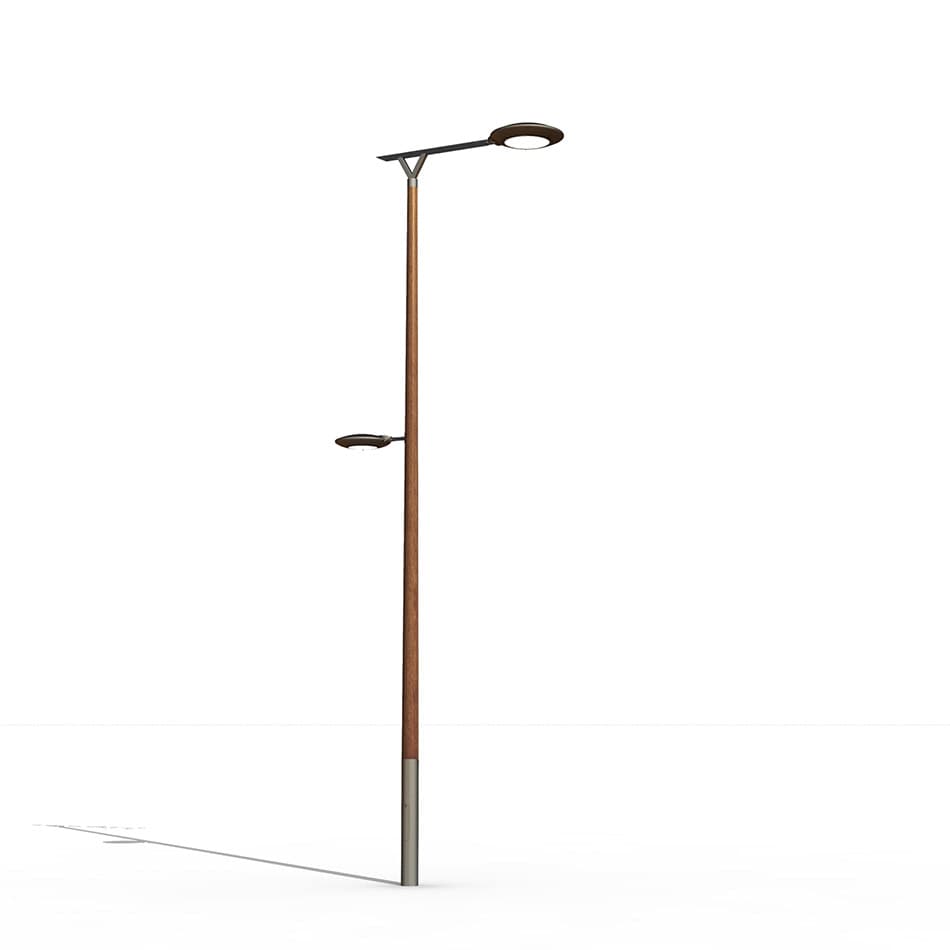

Its clean and classic lines go well with a variety of different luminaires. Luminaires can be mounted either on an arm or directly on top of the pole.
The shorter versions of the Pallas model are 3–6 metres tall and go by the name Pallas Park.
We recommend Pallas for
- parks and gardens
- squares
- city centres and pedestrian/cycle lanes
- residential areas
- urban streets and roads
- parking areas
Download product card Share link to email Report an error
Share this article
Technical specs
Weight (kg)
155
Material
wood/steel
Pole shape
conical
Lighting height (m)
10
Shaft top diameter (mm)
120
Arm/cross arm type
no arm
Spigot diameter (mm)
60/76
Embedding (mm)
700
Base embedding diameter (mm)
219
Base diameter (mm)
219
Base height (mm)
1600
Door width x height (mm)
100x500
Connection compartment internal dimensions (mm)
95x170
Distance door bottom to ground (mm)
500
EN40 capacity FI (22 m/s, CAT2, class A) m²
1,71
Foundation
Foundation with embedding
Embedding 700 mm
For example, we recommend the following Lujabetoni concrete bases for this product
| Product type | Electrical number | |
|---|---|---|
| Option 1 | RBJ-5B | 4607266 |
| Option 2 | RBJ-5 RST | 4607220 |
| Rubber protector for this pole and base |
360/204K | 4607407 |
Foundation with flange plate
Flange
We recommend Tehomet flange c-c 300 for this product
Surface treatment
Surface treatment of wooden parts
The long service life of wooden poles requires a proven surface treatment. We use a surface treatment system developed by the Finnish Teknos. Below you will find samples of the standard colors of Tehomet’s wooden light poles.
Read more about wood surface treatment on the Wood Protection and Surface Treatment page.
Surface treatment of steel parts
Steel parts are galvanized according to international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
You can see the standard colors of the metal parts of the wooden light poles below. Read more about our painting service on the Painting Service page.
