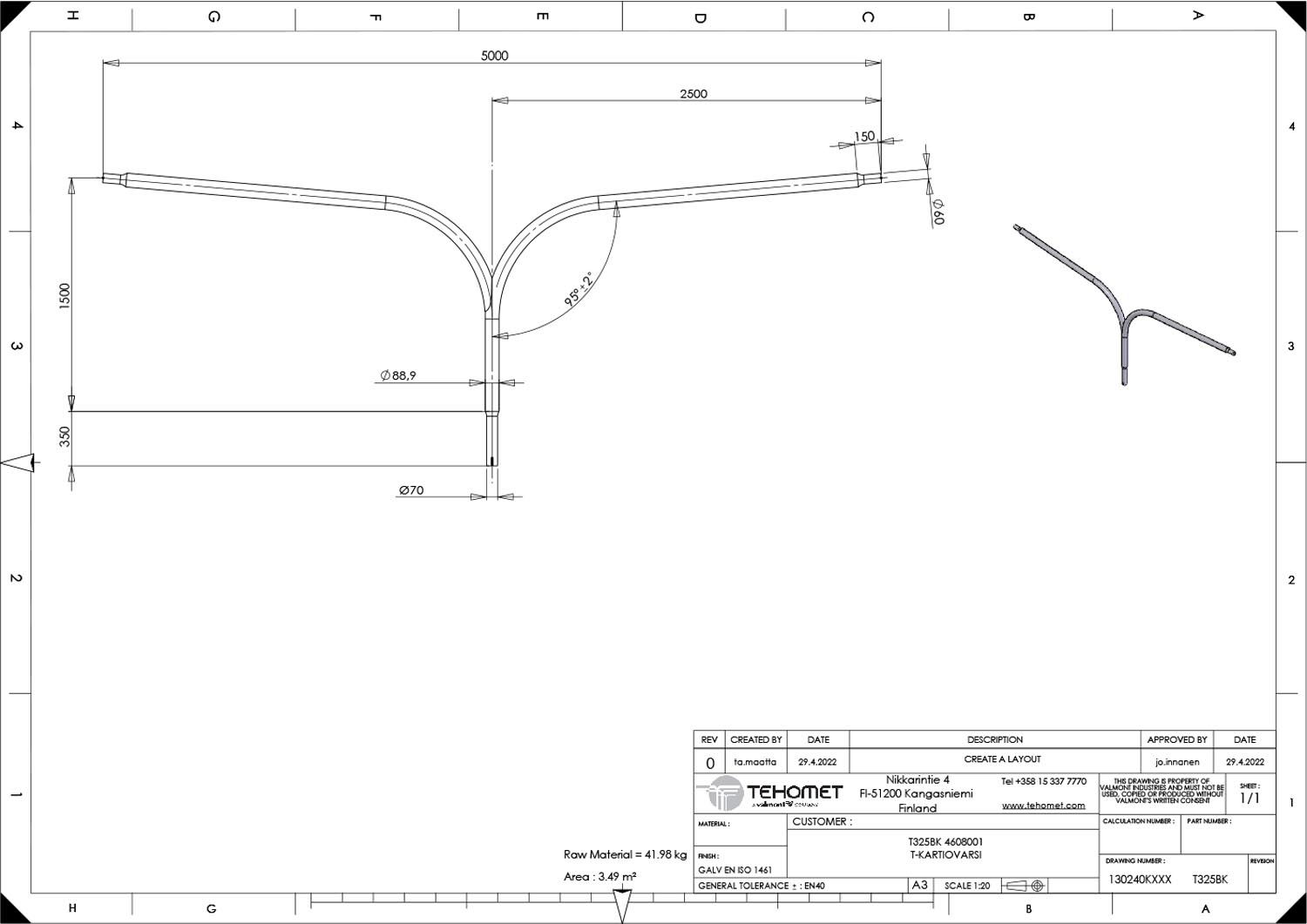

T325BK
Electrical number: 4608001
Product group: Arms
Product number: T325BK
Tehomet conical arms
Dimensioning of products: standard SFS-EN 40-3-3
Manufacture of products: standard SFS-EN 40-5
Raw material: low-silicon steel (Si + P ≤ 0.04%)
Galvanizing: international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
Luminaire fitting for conical poles: diameter 60 mm and length 100 mm.
Arm mounting: There are two sets of screws with a 3×120º pitch at the end of the pole (not straight conical poles) for easy and reliable attachment of the arm.
Download product card Share link to email Report an error
Share this article
Technical specs
Weight (kg)
47
Material
steel
Pole shape
conical
Lighting height (m)
-
Shaft top diameter (mm)
89
Arm/cross arm type
two-armed
Arm outreach/cross arm width (mm)
2500
Arm diameter (mm)
89
Spigot diameter (mm)
60
Surface treatment
Surface treatment of metal parts
Zinc coating: international standard EN ISO 1461 (layer thickness typically <90 μm).
Read more about galvanizing our steel poles: Hot-dip galvanizing steel poles
The steel parts can be painted in standard RAL colors or with an easy-to-maintain and tough Plascoat coating. The standard colors of Tehomet’s steel lighting poles are shown on the Painting Service page.
