Pole installation accessories and mountings
Anchor bolt cages and flange plates

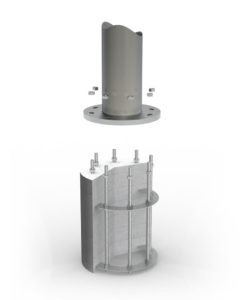

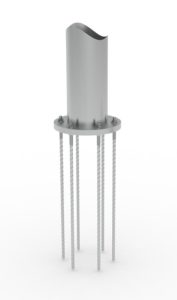

Anchor bolt cages
Poles and masts can be equipped with a flange plate to enable anchor bolt cage installation.
The anchor bolts can be precisely positioned with the aid of a casting mould and a template.
The size of the anchor bolt cages will vary depending on the spacing of the flange holes and the dimensions of the pole. Custom models are also available on request.
Standard anchor bolt cages are available for flanges with standard hole spacing:
Flange plates
Standard flanges are available in square and circular versions.
Square flanges are typically used for decorative wooden poles.
Sliding flanges and hinged flanges are also available to facilitate maintenance.

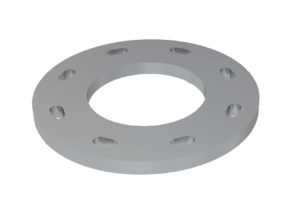

Round standard flange plate, types L1–L8.
| Electrical number | Type | External diameter ∅ mm | Flange hole spacing mm | Bolt | Number/spacing of bolts |
|---|---|---|---|---|---|
| – | L1 | 260 | 200 | M16 | 4/90° |
| – | L2 | 325 | 250 | M20 | 4/90° |
| – | L3 | 420 | 325 | M24 | 4/90° |
| – | L4 | 420 | 325 | M24 | 4/90° |
| – | L5 | 500 | 400 | M24 | 6/60° |
| – | L6 | 560 | 450 | M30 | 6/60° |
| – | L7 | 620 | 500 | M30 | 8/45° |
| – | L8 | 700 | 550 | M36 | 8/45° |
Mounts
In some places, poles must be installed on walls. Tehomet also has suitable wall mounts for such situations. We can also supply a variety of base mounts for attaching poles to rocks or bridges.

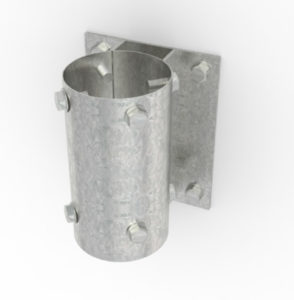

Wall mount
For attaching a light pole to a wall or bridge.
The mount is fitted with adjustable screws to enable use with poles of various diameters. By adjusting the screws, you can also ensure that the pole is installed in a straight upright position.
WALL MOUNT Ø 100 – Ø 142
WALL MOUNT Ø 143 – Ø 180

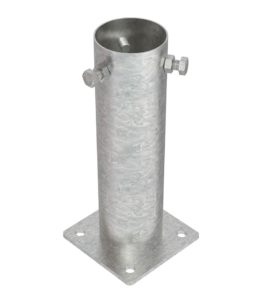

Base mount for rock
For installing a light pole on a rock surface. The upper section has adjustable screws to ensure that the pole can be installed in a straight upright position.
There are two sizes of bolt available for use with poles of varying diameters.
Guides for centring the pole can be found inside the base mount.
BASE MOUNT FOR ROCK Ø 100 – Ø 142
BASE MOUNT FOR ROCK Ø 143 – Ø 180

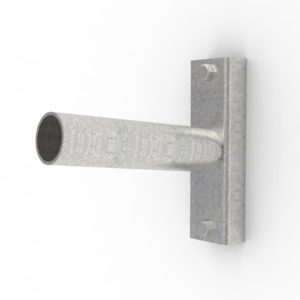

Wall bracket
Mounting plate height 200 mm
Hole spacing 170 mm
5° inclination
| Electrical number | Type | Arm length mm | Arm diameter ∅ mm | Wall plate mm | Hole spacing mm | Mounting hole ∅ mm |
|---|---|---|---|---|---|---|
| – | SV101/60 | 100 | 60 | 80 x 200 | 170 | 10 |
| – | SV102/48 | 200 | 48 | 80 x 200 | 170 | 10 |
| – | SV102/60 | 200 | 60 | 80 x 200 | 170 | 10 |
| – | SV105/48 | 500 | 48 | 80 x 200 | 170 | 10 |
| – | SV105/60 | 500 | 60 | 80 x 200 | 170 | 10 |

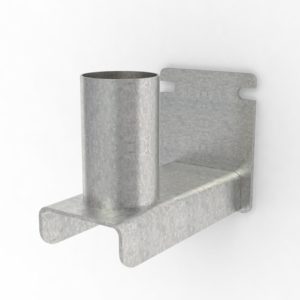

Wall bracket with vertical adapter
| Type | Spigot adapter diameter mm | Hole spacing mm | Spigot adapter diameter ∅ mm | Spigot adapter height ∅ mm | Outreach mm |
|---|---|---|---|---|---|
| – | 128 | 77 | 60 | 100 | 100 |

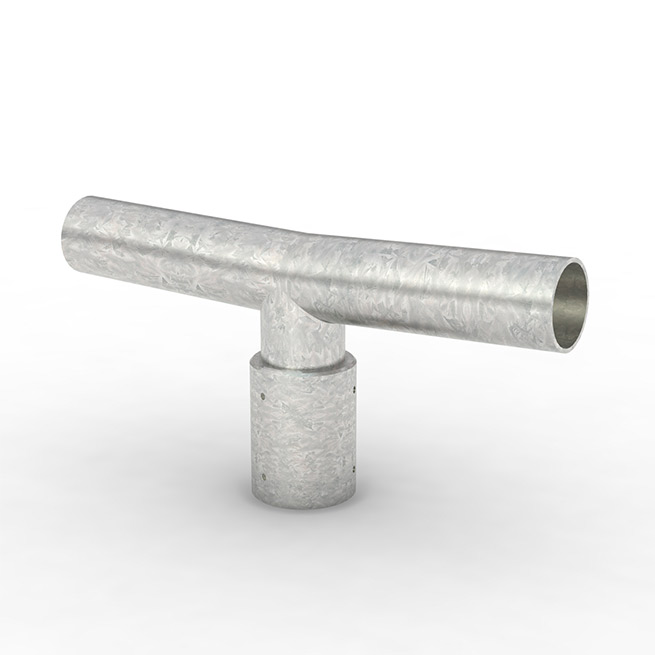

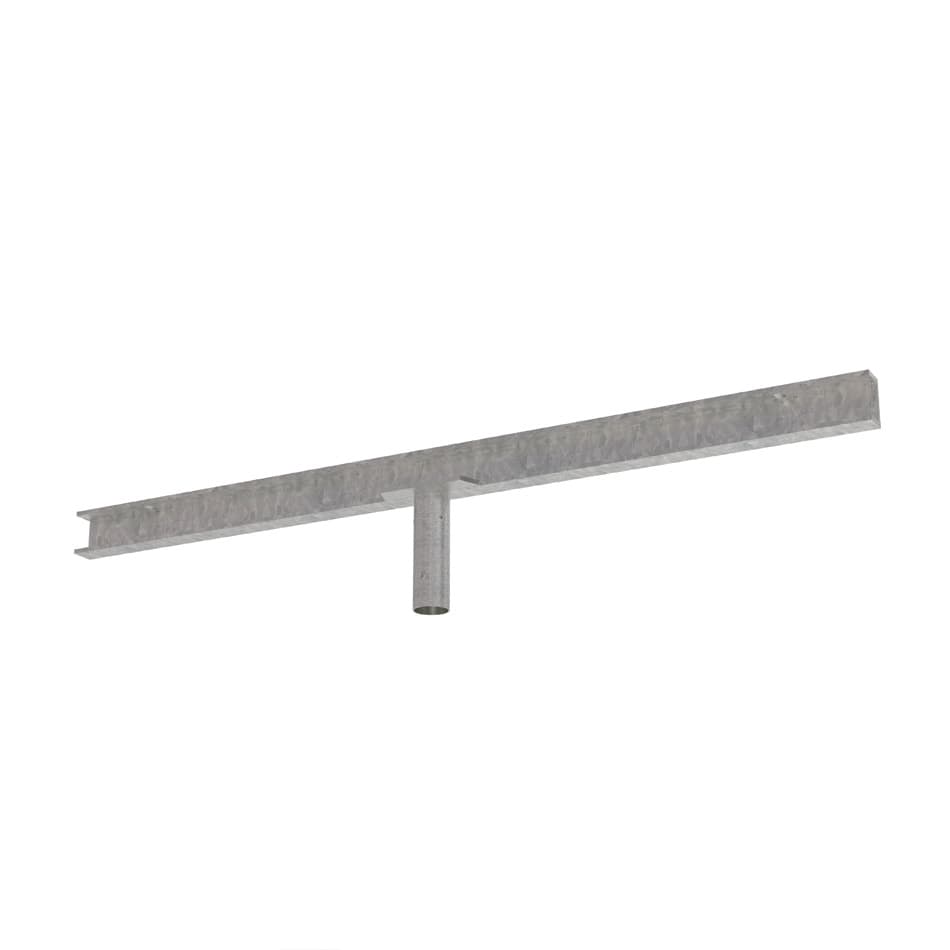

Cross arms
Cross arms for installing floodlights are available in various lengths according to the number of lights required.
| Electrical number | Type | Spigot adapter diameter ∅ mm | Spigot adapter height ∅ mm | Cross arms width mm |
|---|---|---|---|---|
| – | T005/89 | 89 | 250 | 500 |
| 4608528 | TO10/89 | 89 | 250 | 1000 |
| 4608529 | TO15/89 | 89 | 250 | 1500 |

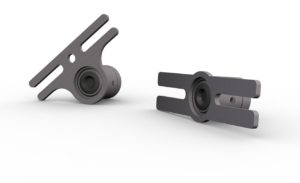

Siipi-floodlight adapter

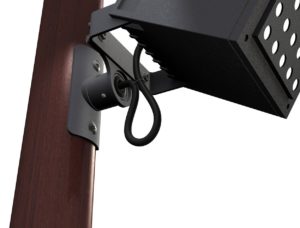

Mounting brackets enable you to attach a variety of lights without using fixed spacing between mounting holes. The adapter is also easy to modify. It can be attached directly to a steel pole shaft or, for wooden models, to a wooden shaft with the aid of a mounting plate.
Directional range ±40°
Feedthrough rubber for cabling
There are two models available:
01 A straight version for use when the light’s mounting piece has a cable hole through the center,
02 A stepped model for use when there is no ready-made cable hole in the mounting piece.
Pole adapters

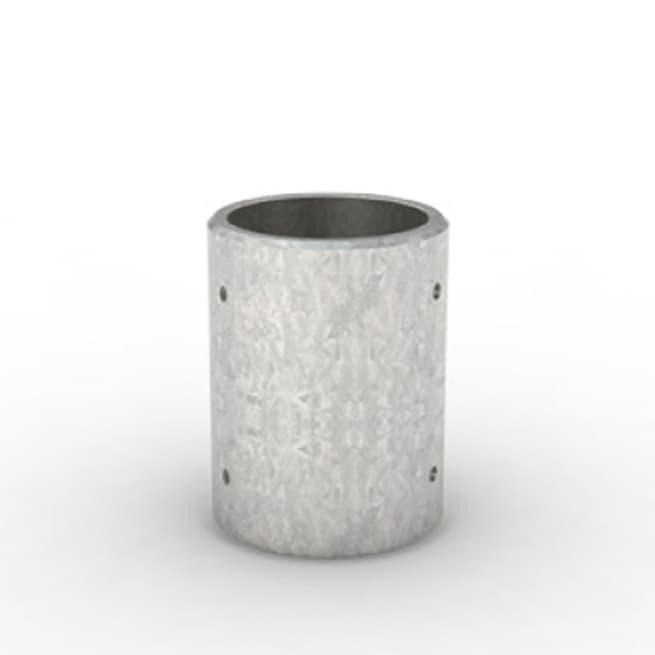

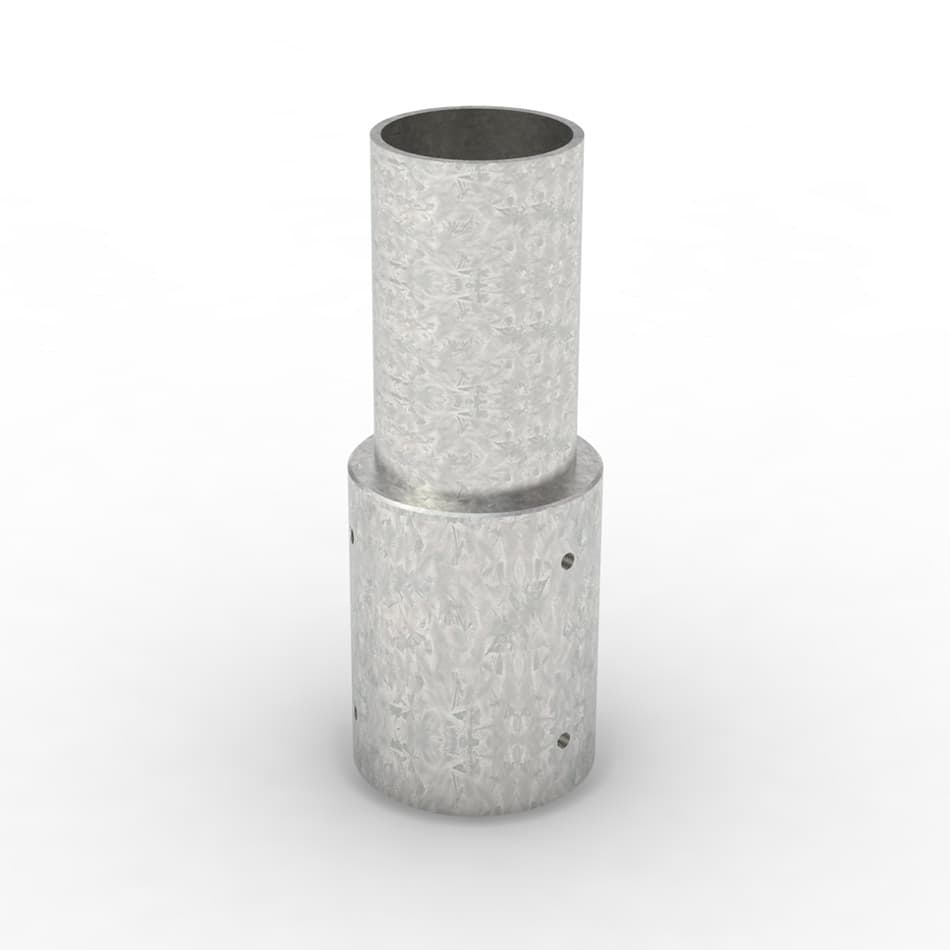

You can use a sleeve socket to make the top of a pole larger or smaller to fit a variety of luminaires.

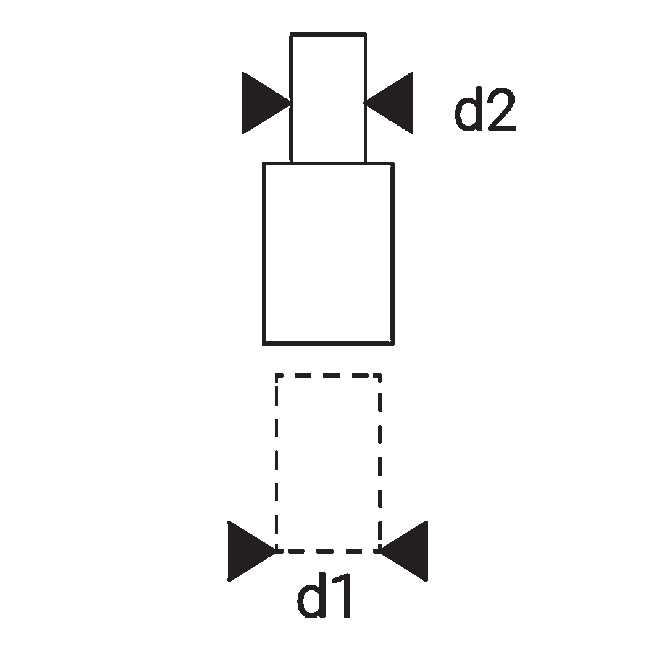

| Electrical number | Type | Pole top d1 mm | Spigot d2 mm | Spigot length mm |
|---|---|---|---|---|
| – | Pole adapter 60/48 | 60 | 48 | 100 |
| – | Pole adapter 60/76 | 60 | 100 | |
| – | Pole adapter 76/60 | 76 | 60 | 100 |
| Electrical number | Type | Pole top d1 mm | Arm diameter ∅ mm | Outreach mm | Spigot d2 mm | Spigot length mm |
|---|---|---|---|---|---|---|

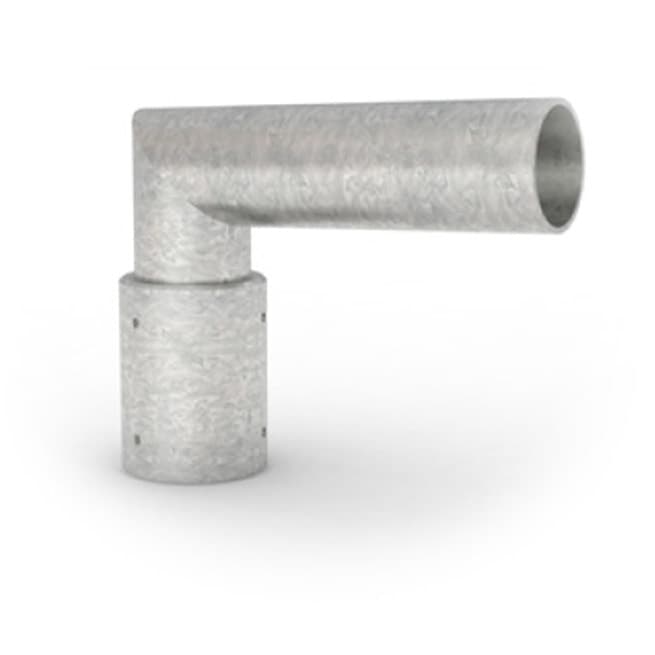

| 4606118 | P102 1-OS. VARSI | 60 | 60 | 200 | ||
| 4606119 | T102 2-OS. VARSI | 60 | 60 | 200 | ||

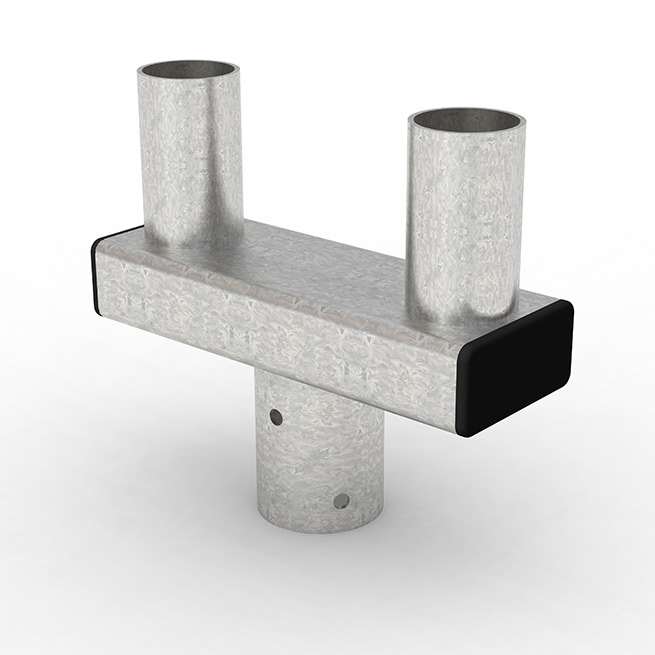

| 4609440 | T101/60 HAARAKAPPALE | 60 | 60 | 100 |
If your site requires a non-standard mounting solution, we will be happy to help you choose the right package. If you can’t find a standard component that meets your needs, we will design and manufacture the required components.
